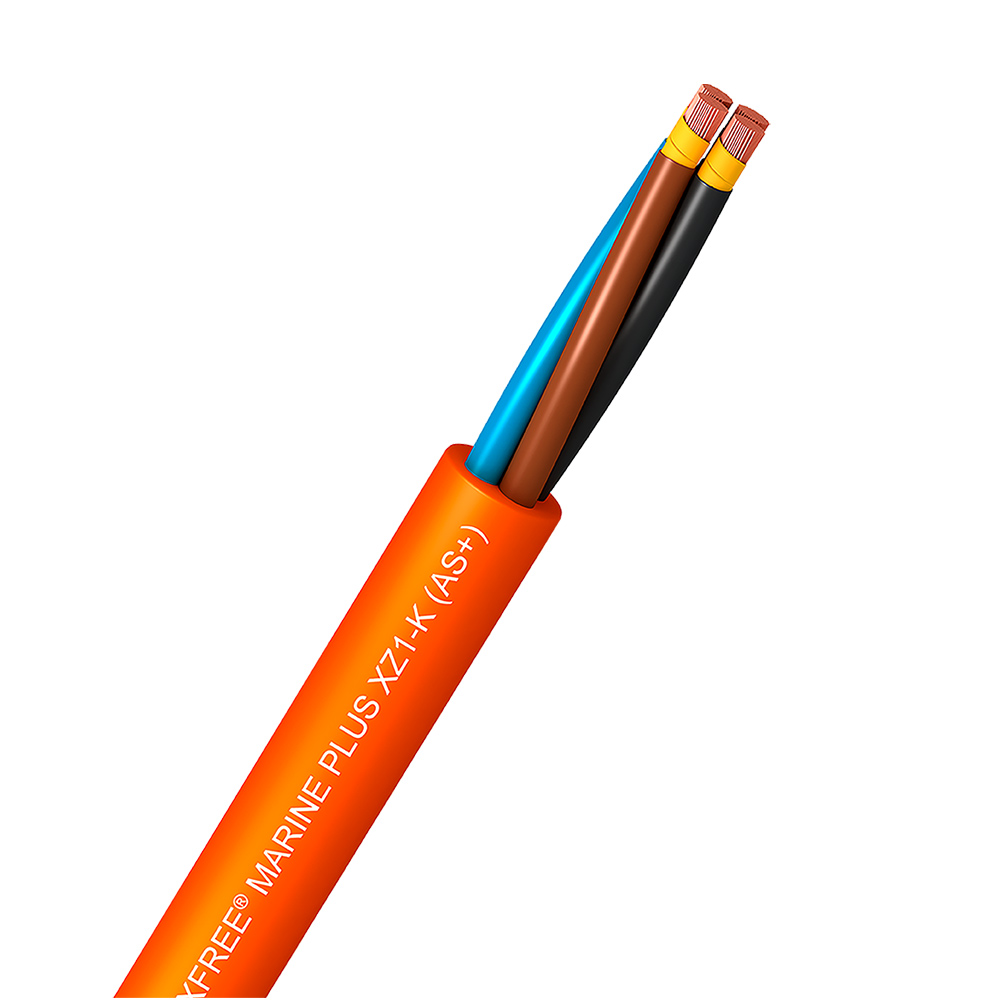

Topcable / TOXFREE® MARINE PLUS XZ1-K (AS+)

Topcable / TOXFREE® MARINE PLUS XZ1-K (AS+)

The TOXFREE® Marine Plus XZ1-K (AS+) is specially designed to transmit electric power in the presence of fire, assuring electric supply to emergency circuits, like signalling lights, smoke extractors, acoustic alarms, water pumps, etc. In case of fire, it does not emit toxic or corrosive gases, thereby protecting public health and avoiding any possible damage to electronic equipment. For this reason, its use is recommended in public places and marine applications.

Copper, class 5 (flexible).

Insulation
Mica Tape + XLPE.
The standard identification of insulated conductors is the following:
1x Natural.
2x Blue + Brown.
3x Brown + Black + Grey.
4x Brown + Black + Grey + Blue.
5 or more conductors Black numbered.
Other colours available on request.

Outer sheath
Polyolefin LSZH.
Orange colour.
Non-toxic, fire retardant and fire resistant.

Standards / Compliance
Standards and approvals
CE
BUREAU VERITAS.
LLOYD’S REGISTER.
ABS.
DNV-GL.
RoHS.
Top Cable reserves the right to carry out any modification to the data sheets whatsoever without giving previous notice. All renders, specifications and particulars of weights, size and dimensions contained in this documentation is indicative only and shall not be binding on Top Cable.
